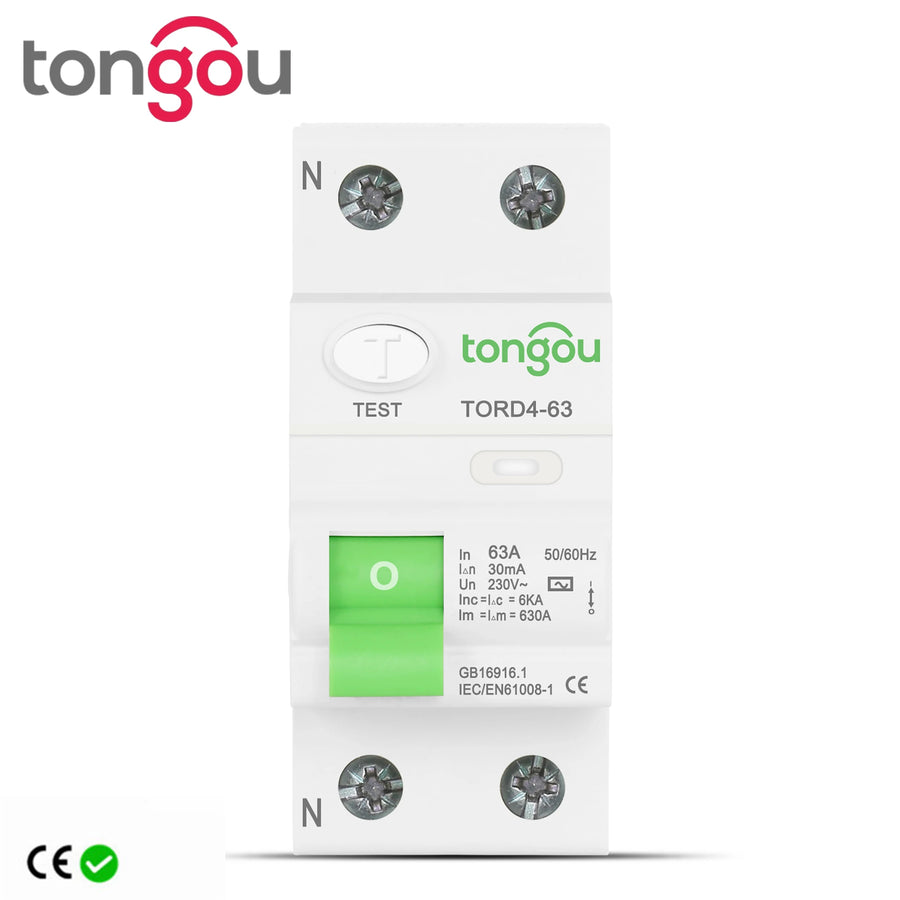

AC Type RCCB Electromagnetic Residual Current Circuit Breaker AC ELCB 2 Pole 16A 25A 40A 63A RCD 10mA 30mA 100mA 300mA TONGOU

👁️ 23 personas viendo este producto

AC Type RCCB Electromagnetic Residual Current Circuit Breaker AC ELCB 2 Pole 16A 25A 40A 63A RCD 10mA 30mA 100mA 300mA TONGOU

⭐⭐⭐⭐⭐ (4.8 · 1.243 opiniones)

€25,37

⚡ Stock limitado

⚡ Comprar ahora

🚚 Envío 24/48h

🔒 Pago seguro

↩️ 14 días devolución

Descripción

SPECIFICATIONS

Brand Name: TONGOU

Breaking capacity: 6KA

Certification: CE,CE CB TUV

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

Electro-mechanical endurance: More than 20000 cycles

High-concerned chemical: None

Model: 30 - 300mA is Magnetic type, 10mA is Electronic type

Model Number: RD4-63

Origin: Mainland China

Rated current: 16A

Rated frequency: 50/60Hz

Rated making and breaking capacity: 630A

Rated residual operating current: 10 mA

Rated voltage: 230V AC, ( 110V Customized )

Residual Current characteristic: AC

Standard: IEC/EN 61008-1

Type: Earth Leakage

is_customized: Yes

Hot Sale

General:

Please note

this is an RCCB (Residual Current Circuit Breaker) which provides leakage protection only. It does not include short-circuit protection. For complete protection including both leakage and short-circuit protection, please select our RCBO model (TOBD6)

Tips: 30mA, 100mA, 300mA is electromagnetic type, 10mA is electronic type.10mA cannot be tested with 5V battery.

There is a wiring diagram above the test button, please follow the it. The power supply must enter from the top and output from the bottom. The neutral line on the left and the live line on the right.

The default rated voltage of the product is 230V, (110V needs to be customized, please contact customer service)

Residual Current Circuit Breaker is applicable to electric circuits with rated voltage 230/400V AC, frequency 50/60Hz and rated current up to 16Amp.

The RCCB provides indirect protection to the operator’s body under such condition that the exposed live parts should be connected to a proper earthing pole.The RCCB also provides protection against the fire danger caused by earth fault current due to function failure of over-current protection device.

Special tips:

1. RCCB with rated sensitivity up to 10mA could be used as supplementary protecting device in case other
protecting device fails its protection against electric shock.
2. RCCB designed for household installation and other similar application, is for non-professional operation,
and no maintenance is required.
3. RCCB provides on protection against electric shock resulted from direct contacts of both protected lines,or
leakage current between these two lines.
4. Particular devices such as surge protective devices,surge arrester etc are recommended to install at upstream line to RCCB as precaution against potential surge voltage and current occurring at its power input side.

5. Satisfying conditions and applications as mentioned above,RCCB with “ON-OFF” indicating device is considered suitable for isolation function.

Technical Data:

Model Name	TORD4-63
Model	Electronic / Magnetic type
Residual Current characteristic:	AC
Pole No:	2P
Rated making and breaking capacity	630A
Rated current（A）	16A
Rated voltage	110V 220V 230V AC
Rated frequency	50/60Hz
Rated residual operating current \|△(A):	0.01
Rated residual non operating current \|△ no:	0.5\|△ n
Rated conditional short-circuit current inc:	6kA
Rated conditional residual short-circuit current \|△c:	6kA
Tripping duration:	Instantaneous tripping ≤0.1s
Residual tripping current range:	0.5\|\|△n~\|△n
Electro-mechanical endurance	≥20000 cycles
Connection capacity:	Rigid conductor 25mm⊃2;
Connection terminal	Screw terminal Pillar terminal with clamp
Fastening torque	2.0 Nm
Installation	On symmetrical DIN rail 35mm Panel mounting
